1.Problem at present
At present, it is quite a hassle to scan a book and make it into electronic documents. Because the scanning surface of the existing scanning equipment is mostly flat, the book is not easy to lay flat after opening, especially the thick book, it is not easy to lay flat, and the scanning speed of the flatbed scanner is generally slow, often need to scan a page a page, and the work efficiency is low.
2.Solution plan was put forward
This product breaks through the constraints that paper books generally have to be disbound before scanning，it can be scanned directly without disassembly, and it is zero boundary processing to meet the needs of some precious archives and books that are not allowed to be decomposed for scanning，this will omit the work flow of disassembling books and re-binding after scanning, which greatly simplifies the book scanning operation and improves the working efficiency of scanning, in addition, the damage to the book can be avoided without disassembly.
3.Product characteristics
No need to connect to the computer, no need to install the driver, turn on the machine to scan immediately.
It can be scanned without disassembly, can achieve both protection of files, and fast scanning.
Its software and hardware are highly integrated, using an all-in-one design, it is both beautiful and occupies less space.
It comes with a 7 "touch screen, which can be operated with the" finger ", is simple and convenient.
It supports software scan button and hardware scan button, press the button can scan two pages at the same time, scanning speed is fast.
It supports an external mouse and keyboard and a large screen display, and its operation is the same as using a computer.
The scanned picture can be stored in the scanner or saved to the specified path directory.
It can be used independently of a single computer, and can also be interconnected with other computers through the network.
Because what you see is what you get when scanning, the scanning process is clear at a glance, and previewing and saving are the same.
Because the product is equipped with a closed lighting system, so the outside influence is very small.
4.Application scenario
The scanners without disassembly are placed in the workplace, its scanning surface is "∧" shape, when scanning, the books or archives are opened page by page, and then they are inverted on the "∧" type glass panel, and then press the scan soft button in the scan interface or the scan hard button distributed on both sides of the device. the scanner supports the timing scanning function, and the interval time can be set by itself，it supports automatic black edge removal, automatic tilt correction, automatic watermarking and other functions，the scanned images can be temporarily stored in the scanner or saved to the set network directory, which is flexible and convenient.

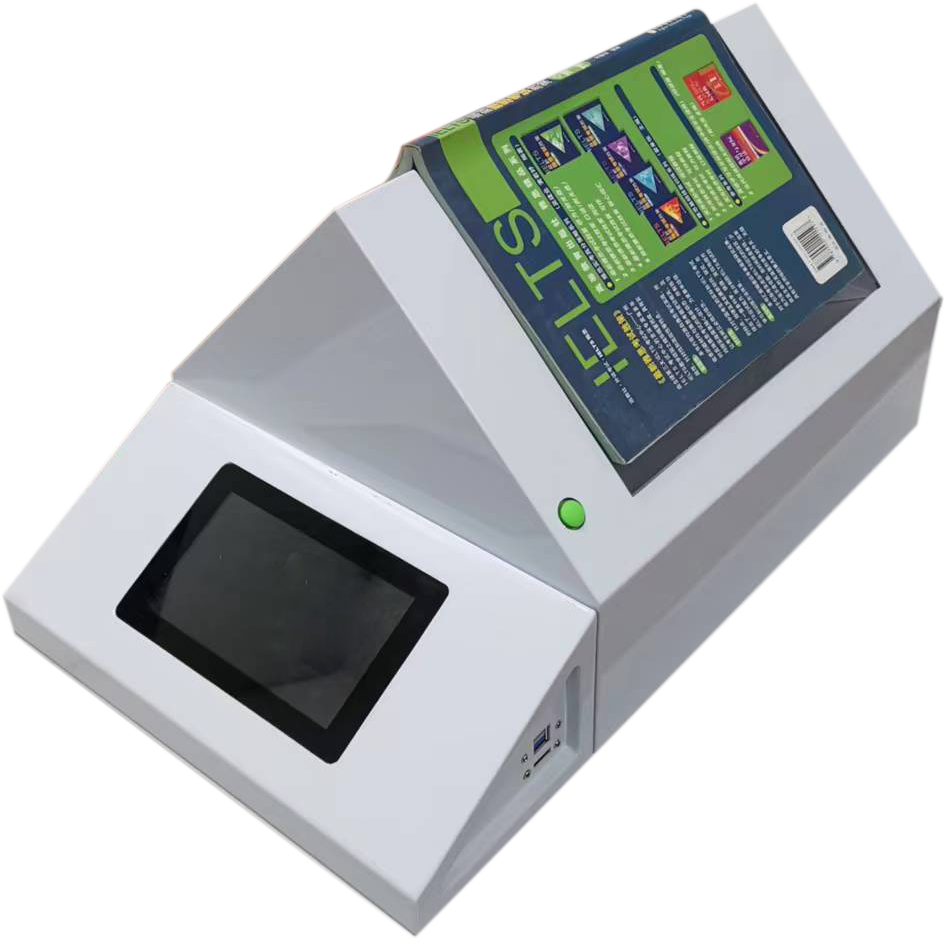

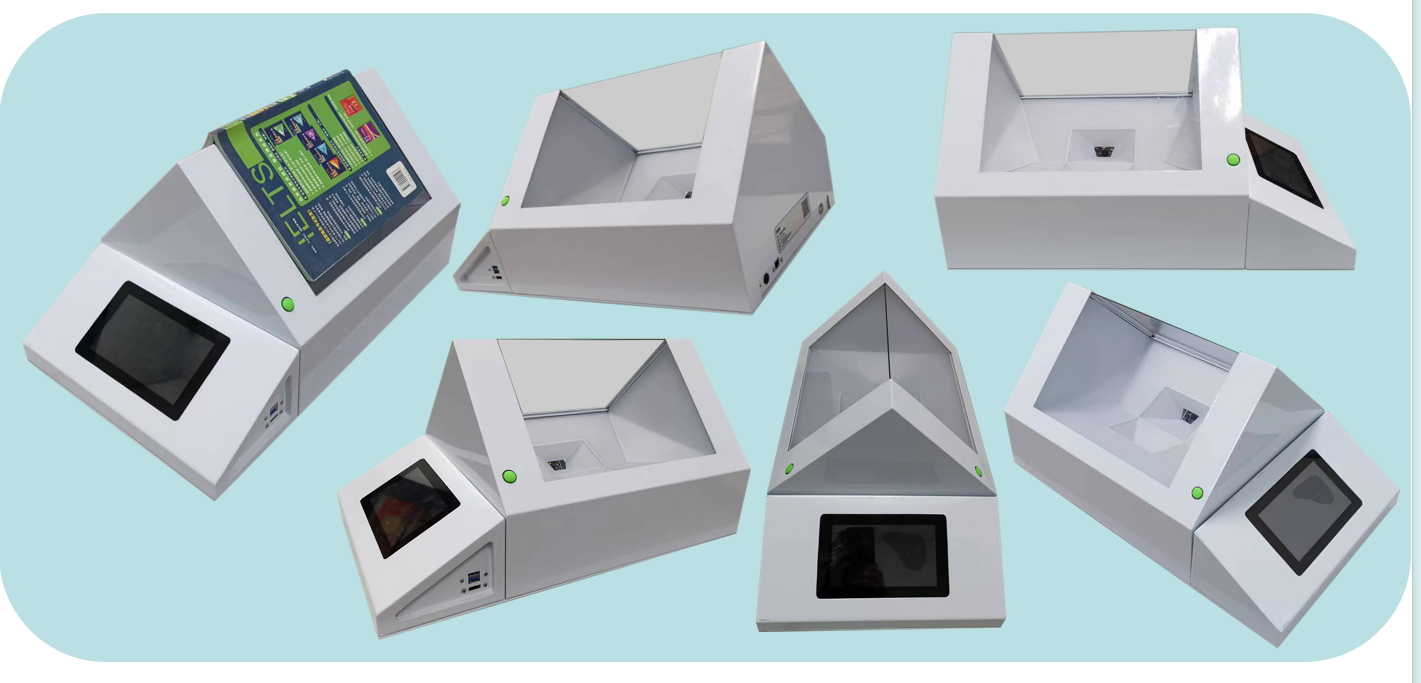

5.Product appearance /Product structure
6.Technical specifications：
| Serial | Technical performance | Parameter index |
|---|---|---|
| 1 | Product name | Scanned without disassembly |
| 2 | Product model | KST-R2416 |
| 3 | Working mode | Turn on and can use |
| 4 | Scanning mode | Scanners that don't need to disassemble books and periodicals |
| 5 | Hardware configuration | -core 64-bit (2.4G Hz) processor /8G RAM /64G eMMC |
| 6 | Operating system | Embedded Linux operating system(Tailoring on demand) |
| 7 | Built-in software | Scan, automatically remove black edges/skew correction/add watermark etc |
| 8 | Scanning features | Preview and save synchronization |
| 9 | Scanning technique | CMOS image sensor/dual module |
| 10 | Light source | LED closed constant light source/color temperature: 5500K/ illuminance :3000 -- 4200 |
| 11 | Optical resolution | Module pixels 4656X3946(16 million), using dual modules |
| 12 | lens | Distortion :<1%, using dual lenses |
| 13 | Color | 48 bit true color /256 color /16 color/black and white |
| 14 | Display screen | Comes with 7 inch touch/display |
| 15 | Scanning size | Max：297×212 mm（A4) |
| 16 | Scanning speed | Press the button can scan two pages at the same time，<1 second |
| 17 | File format | Bmp / jpg / tif |
| 18 | External interface | USBX2(keyboard/mouse)/HDMI(large display screen)/1000M network |
| 19 | Scanning objects | Ancient books/documents/archives/books/periodicals, etc |
| 20 | Work environment | Temperature: 5° C to 35° C, relative humidity: 10-85% |
| 21 | Power supply | Input: 100-240V, 50/60HZ Output: DC24V, 3A |
| 22 | Power consumption | Working: < 30W, standby: < 1W |
| 23 | Dimensions appearance | Size:: 580X360X300mm(L×W×H)/ "∧" type |
| 24 | Gross weight | 14.8Kg |
| 25 | Product certification | China 3C certification/China Energy Saving certification |
